昨天我们看到了施耐德刚刚发布一款基于M580的冗余控制器，很多工控朋友都在问具体性能如何，今天我们就在这八卦一下。
首先我们来看一下CPU的正面和背面
接下来进入我们的主题，来看看它的参数
|
CPU参数
|
产品系列
|
Modicon M580
|
|
产品类型
|
Redundant processor module
|
|
供电模式
|
Internal power supply via rack
|
CPU能力
|
机架个数
|
8
|
|
特殊 I/O
|
Accurate time stamping
Counter
Serial link
Motion control
HART
SSI encoder
|
|
检查
|
Process control
|
|
控制方式
|
Programmable loops
|
|
集成通讯接口
|
1 Ethernet HSBY port
USB type mini B
2 Ethernet TCP/IP device network
1 Ethernet TCP/IP service port
|
|
远程I/O数量
|
31 - 2 rack(s) per X80 and Quantum drops
|
|
分布式设备数量
|
64
|
|
处理器通讯模块
|
24 AS-Interface module
6 Ethernet communication module
|
|
通讯服务
|
DIO scanner
RIO scanner
|
|
内存描述
|
Integrated RAM 4096 kB HSBY data
Integrated RAM 64 MB program and data
Integrated RAM 10 kB system memory
Expandable flash 4 GB data storage
|
|
应用构架
|
1 cyclic/periodic master task
1 periodic fast task
|
|
指令/ms
|
60 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
40 Kinst/ms 100 % Boolean
|
|
电流
|
295 mA 24 V DC
|
|
MTBF
|
600000 H
|
|
标志
|
CE
|
|
状态LED
|
1 LED green Hot standby link status (Hsby Diag)
1 LED green I/O values overrided by user (FORCED IO)
1 LED green processor acting as Standby (STBY)
1 LED green processor acting as Primary (PRIM)
1 LED green processor ID set to B (B)
1 LED green processor ID set to A (A)
1 LED green peer processor running (REMOTE RUN)
1 LED green/red Eth NS (Ethernet network status)
1 LED green/red ETH MS (Ethernet port configuration status)
1 LED red memory card or CPU flash fault (BACKUP)
1 LED green download in progress (DL)
1 LED red I/O module fault (I/O)
1 LED red processor or system fault (ERR)
1 LED green processor running (RUN)
|
|
重量
|
0.849 kg
|
环境参数
|
工作温度
|
0...60 °C
|
|
存储温度
|
-40...85 °C
|
|
海拔高度
|
0...2000 m
|
|
相对湿度
|
5...95 %
|
|
IP等级
|
IP20
|
|
标准
|
CSA C22.2 No 142
EN/IEC 61131-2
UL 508
LWD 2006/95/EC
EMC 2004/108/EC
CSA C22.2 No 213 Class I Division 2
EN/IEC 60079-0
EN/IEC 60079-31
EN/IEC 60079-15
|
|
认证
|
GOST
RCM
WEEE directive 2002/96/EC
Merchant Navy
EAC
REACH directive 1907/2006/EC
RoHS directive 2011/65/EU
ATEX II 3 Gas & Dust zone 2/22
|

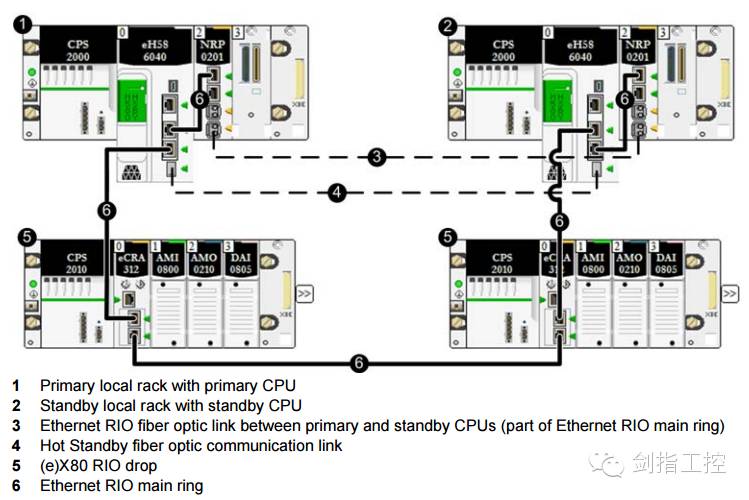

最后我们还要看一下作为一款冗余的控制器，在搭建系统结构时，又是如何设计的呢？
|
